Adaptor SMA
The SMA series coaxial RF adapters are the widest application range and the largest variety among all adapter series. There are approximately hundreds of optional types. Its maximum operating frequency can reach up to 26.5 GHz. Among them, they are designed and developed according to three different frequency bands of 6G, 18G and 26.5G for application produk.
Deskripsi
PENDAHULUAN PRODUK
The SMA series coaxial RF adapters are the widest application range and the largest variety among all adapter series. There are approximately hundreds of optional types. Its maximum operating frequency can reach up to 26.5 GHz. Among them, they are designed and developed according to three different frequency bands of 6G, 18G and 26.5G for application produk.
Bahan produk
The outer conductor of the SMA connector's body is usually made of metal materials such as brass or stainless steel. It plays a crucial role in shielding and signal transmission. Its cylindrical structure surrounds the inner conductor and dielectric, providing a low-resistance path for the return current of the electromagnetic signal, thus ensuring the stability and integrity of the signal transmisi .
Gaya tubuh produk
Konektor SMA tersedia dalam berbagai bentuk tubuh, termasuk tipe lurus, tipe sudut kanan, 4- lubang flange mount, tipe pemasangan sekat, dan tipe pemasangan b sekot vakum udara .
FAQ Pengadaan
Data Spesifikasi Produk
|
Konfigurasi |
|
|
Konektor 1 Jenis |
Sma |
|
Konektor 1 Impedansi |
50 ohm |
|
Konektor 1 polaritas |
Standar |
|
Jenis konektor 2 |
SMA/GPPO/GPO/2.4mm/2.92mm/3.5mm/n/tnc/bnc/ssmc/mmcx/ipex/ssma |
|
Konektor 2 Impedansi |
50 ohm |
|
Konektor 2 Polaritas |
Standar |
|
Metode pemasangan konektor |
Tidak ada |
|
Gaya Tubuh Adaptor |
Lurus/4 lubang flensa/mount bulkhead/sudut kanan/ |
|
Informasi materi |
|
|
Kontak tengah |
Kubus Emas berlapis |
|
Kontak luar |
Kuningan berlapis emas / stainless steel |
|
Tubuh |
Kuningan berlapis emas / stainless steel |
|
Dielektrik |
PEI/PTFE/Kaca |
|
Data Lingkungan |
|
|
Kisaran suhu |
-55 derajat ke +165 derajat |
|
2011/65/EU (ROHS) |
Patuh |
Jenis adaptor SMA
|
Adaptor SMA RF |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
Fr 1- sma-jjs |
|
|
Dc -18 GHz |
1.15 |

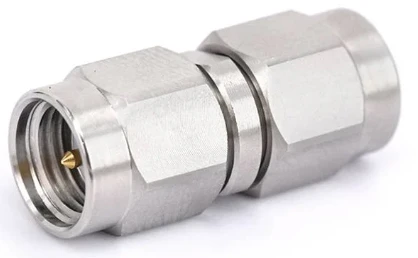

Sma jantan ke laki -laki sma |
|

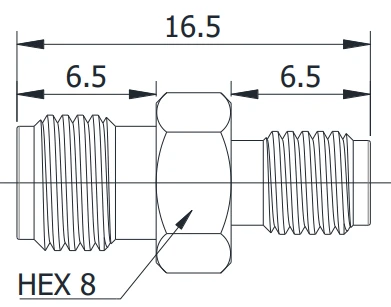

Fr 1- Sma-kks |
|
|
Dc -18 GHz |
1.15 |

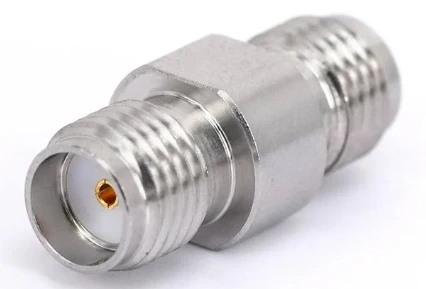

Perempuan sma ke wanita sma |
|
FR 1- SMA-JKS |
|
|
Dc -18 GHz |
1.15 |

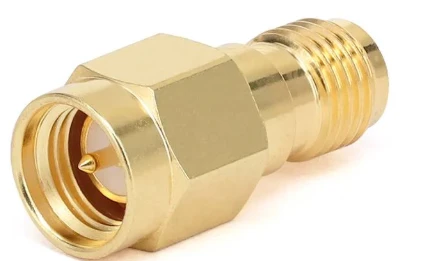

Sma jantan ke wanita sma |
|
Fr 1- sma-kfkg -1 |
|
|
Dc -18 GHz |
1.15 |

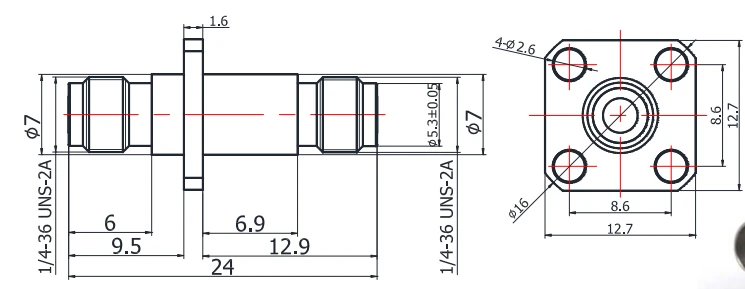

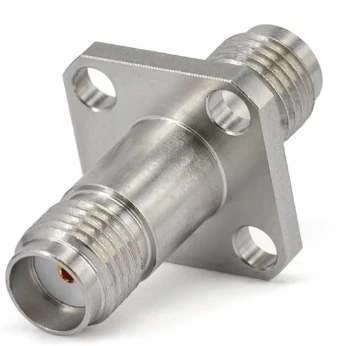

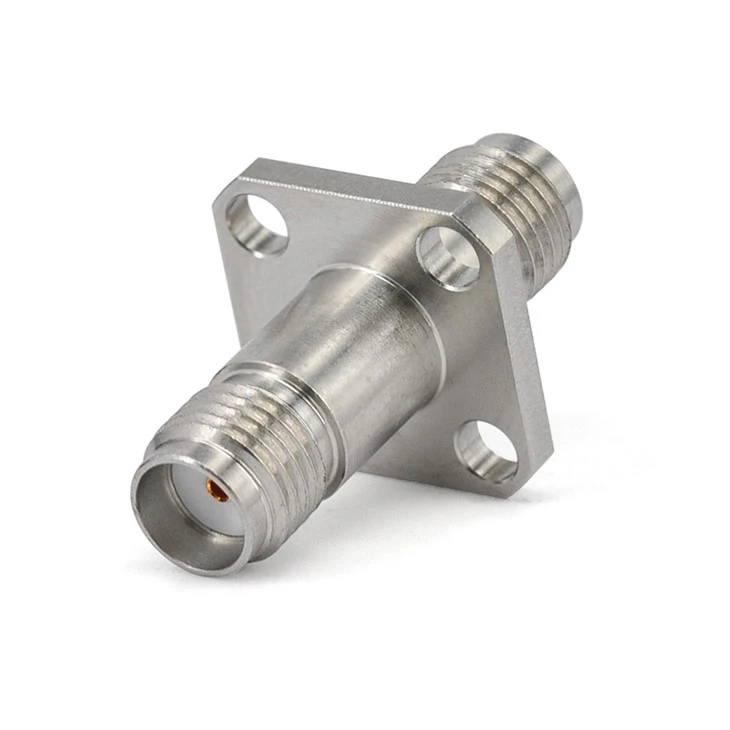

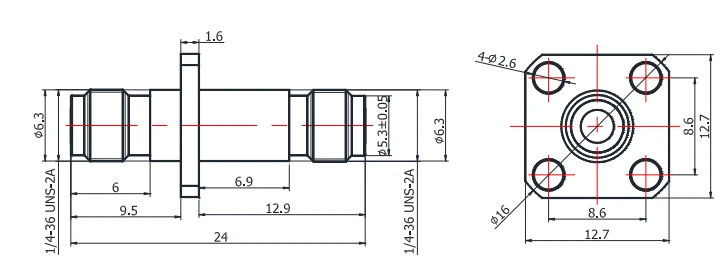

SMA betina ke SMA betina dengan flensa 4 lubang |
|
Fr 1- SMA-kfkg |
|
|
Dc -26.5 GHz |
1.15 |
SMA betina ke SMA betina dengan flensa 4 lubang |
|

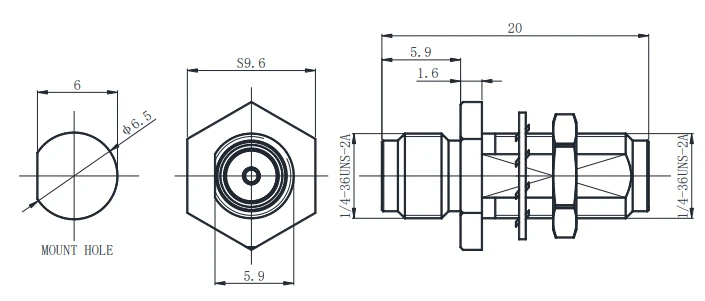

Fr 1- sma-kykg -1 |
|
|
Dc -26.5 GHz |
1.25 |

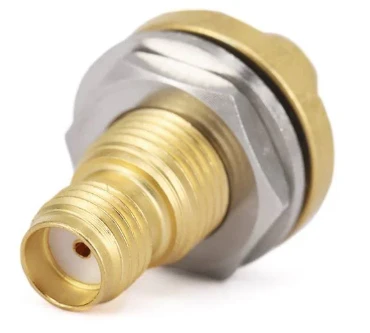

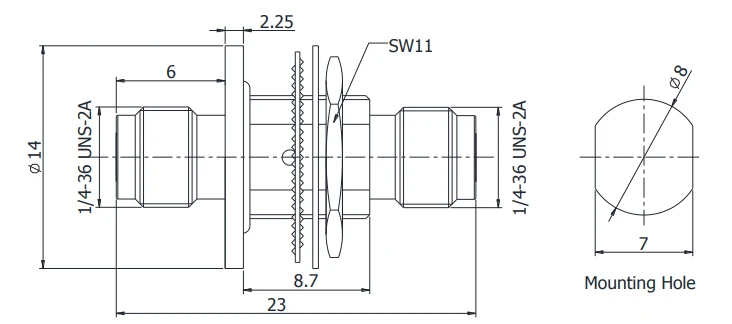

SMA betina untuk perempuan SMA dengan dudukan sekat |
|
Fr 1- sma-jfkg |
|
|
Dc -18 GHz |
1.20 |

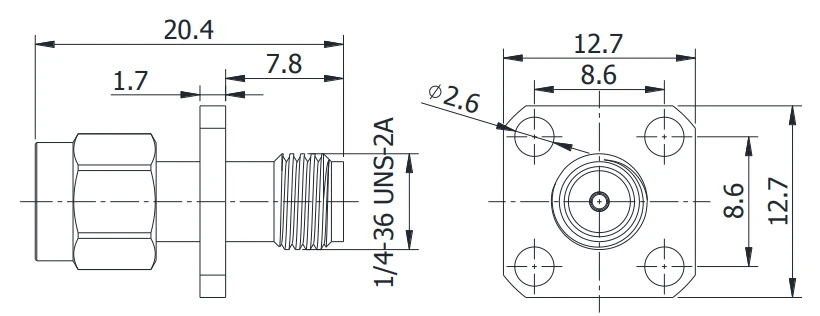

Sma jantan ke betina SMA dengan flensa 4 lubang |
|
Fr 1- sma-jwjs -18 g |
|
|
Dc -18 GHz |
1.25 |
Sma jantan ke sma jantan dengan sudut kanan |
|
Fr 1- sma-kwks -18 g |
|
|
Dc -18 GHz |
1.25 |
SMA betina ke SMA betina dengan sudut kanan |
|
Fr 1- sma-jwks -18 g |
|
|
Dc -18 GHz |
1.25 |
Sma Pria ke SMA betina dengan sudut kanan |
|

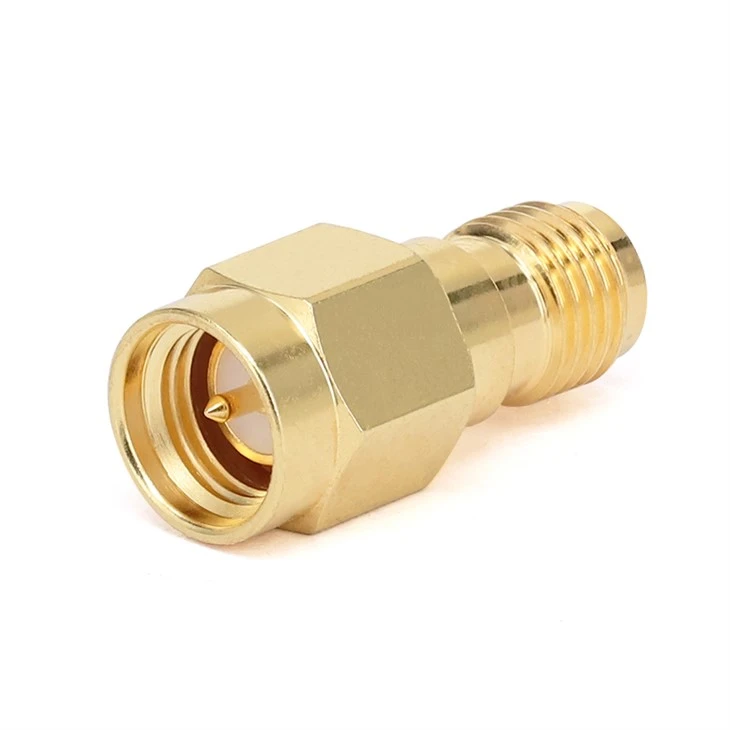

FR 1- SMA-JK |
|
|
Dc -18 GHz |
1.25 |
Sma jantan ke wanita sma |
|
Fr 1- Sma-kk-e |
|
|
Dc -18 GHz |
1.25 |
Perempuan sma ke wanita sma |
|
FR 1- SMA-KK1 |
|
|
Dc -18 GHz |
1.25 |
Perempuan sma ke wanita sma |
|
FR 1- SMA-KYK1 |
|
|
Dc -18 GHz |
1.25 |

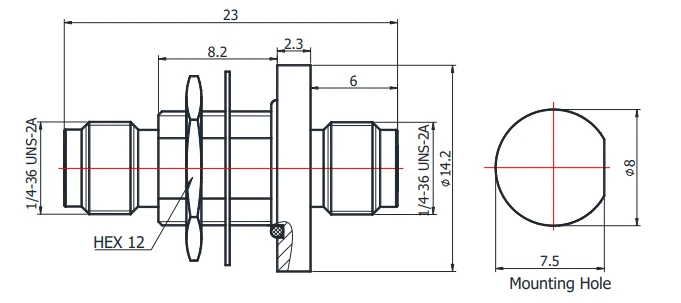

SMA betina untuk perempuan SMA dengan dudukan sekat |
|
Fr 1- Smam-Kyk |
|
|
Dc -18 GHz |
1.35 |
Betina Sma ke SMA betina dengan dudukan sekat dan keketatan vakum |
|
Fr 1- qsma/sma-jks |
|
|
Dc -18 GHz |
1.25 |
Pria SMA cepat ke wanita SMA |
|

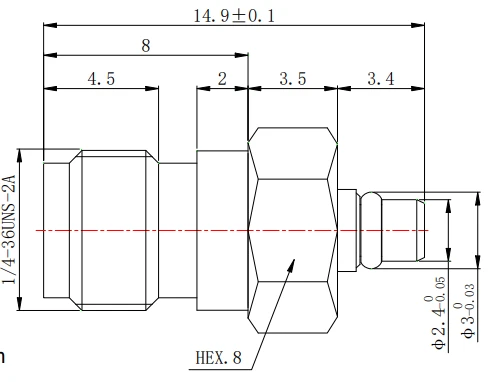

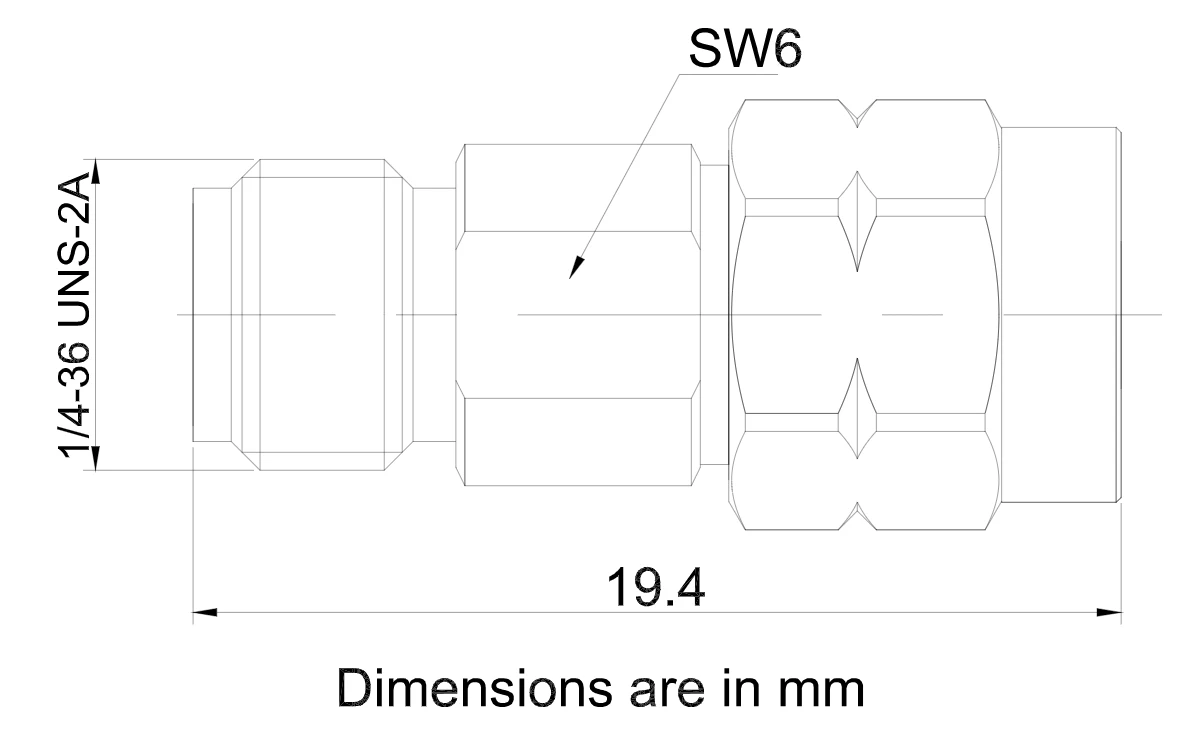

SMA ke adaptor RF 2.4mm |
|||||
|
Sku |
Menggambar |
Fequency |
VSWR |
Jenis Deskripsi |
|
|

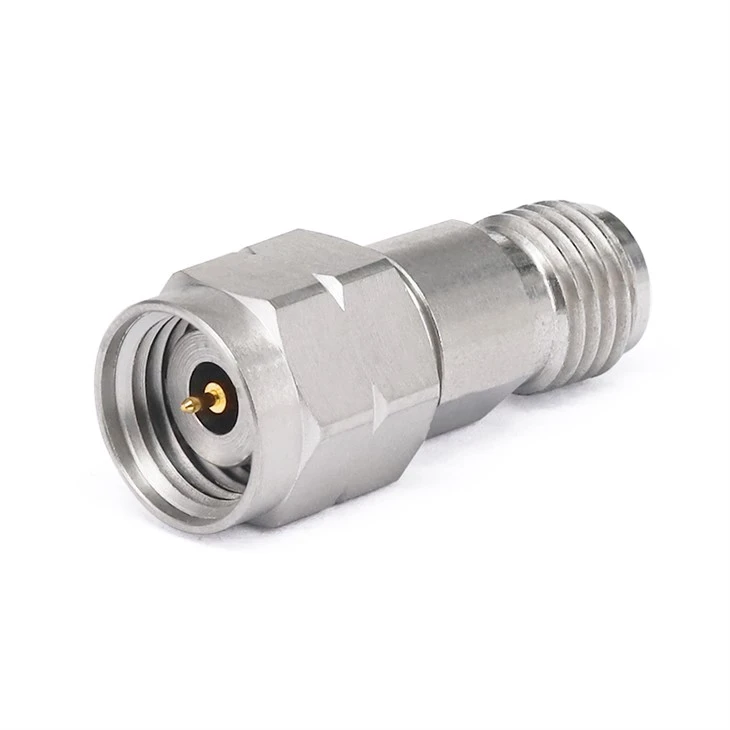

Fr 1- sma/2.4- kjs |
|
|
Dc -26.5 GHz |
1.15 |
Perempuan sma ke 2.4mm jantan |
|

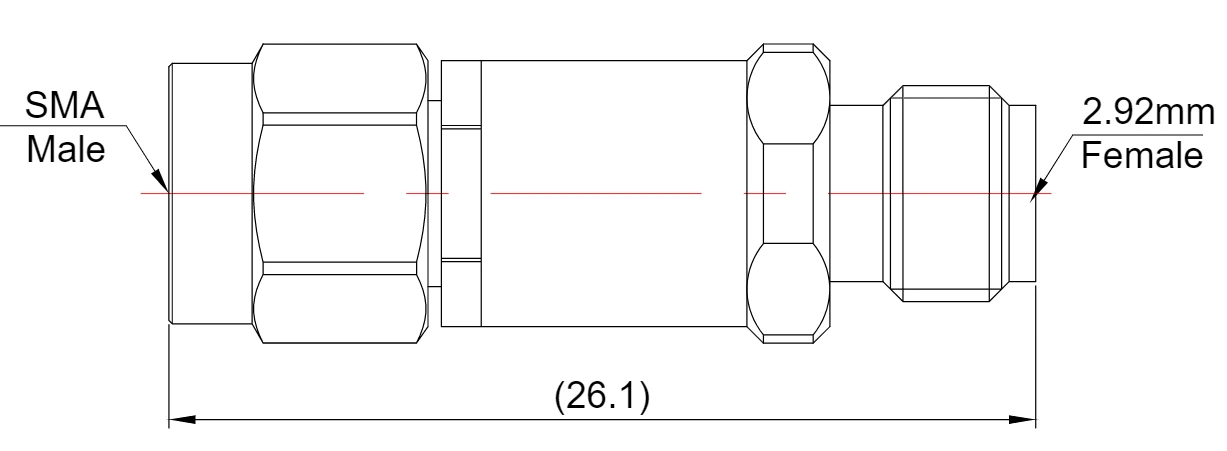

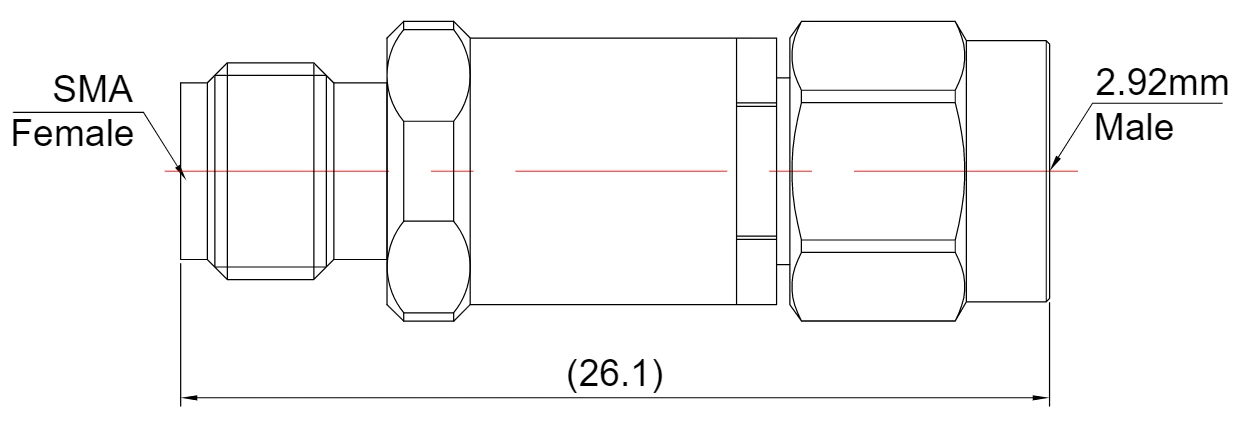

SMA ke 2.92mmAdaptor RF |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|

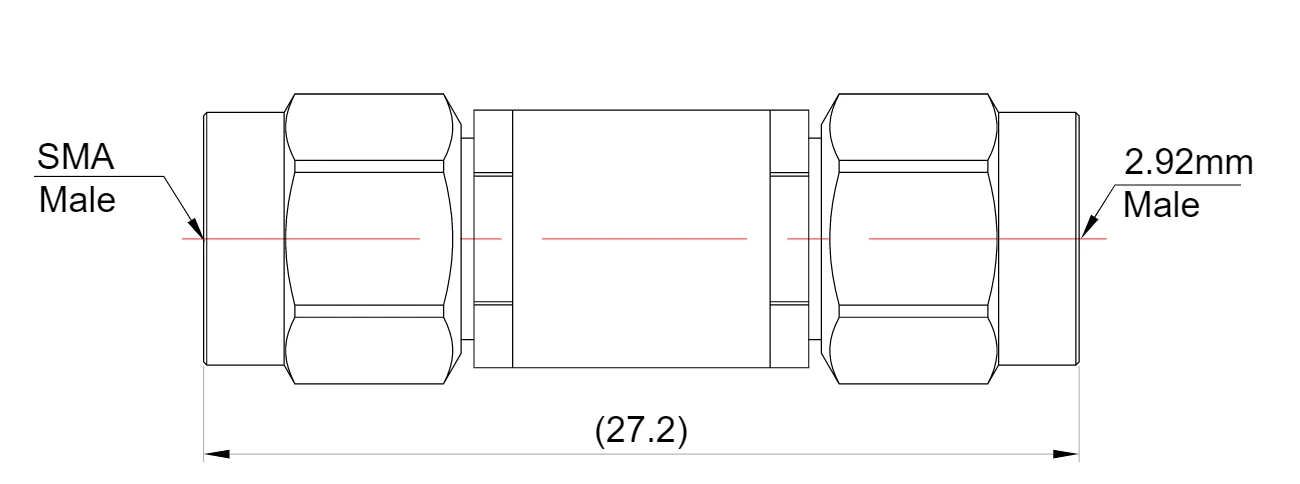

Fr 1- sma/2.92- jjs |
|
|
Dc -18 GHz |
1.15 |
Sma jantan ke 2.92mm pria |
|

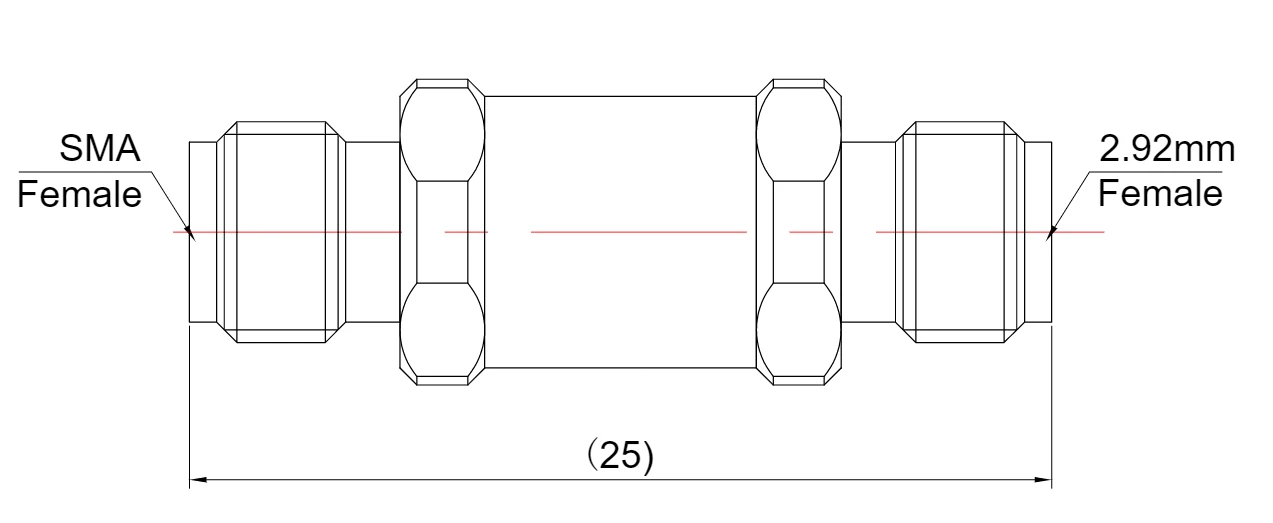

Fr 1- sma/2.92- kks |
|
|
Dc -18 GHz |
1.15 |
Perempuan SMA untuk wanita 2.92mm |
|
Fr 1- sma/2.92- jks |
|
|
Dc -18 GHz |
1.15 |
SMA Pria ke 2,92mm perempuan |
|
Fr 1- sma/2.92- kjs |
|
|
Dc -18 GHz |
1.15 |
SMA betina untuk pria 2.92mm |
|

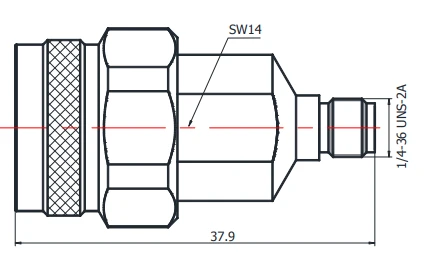

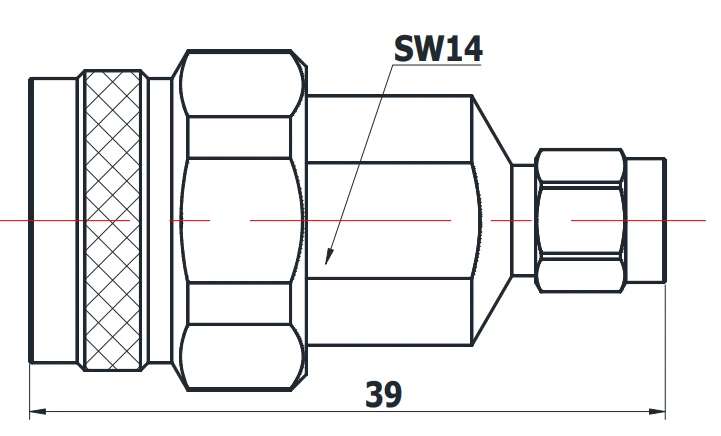

Adaptor sma to n rf |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
Fr 1- n/sma-jjs |
|
|
Dc -18 GHz |
1.15 |
N Pria ke SMA Pria |
|
Fr 1- n/sma-kks |
|
|
Dc -18 GHz |
1.15 |
N betina untuk perempuan sma |
|
Fr 1- n/sma-jks |
|
|
Dc -18 GHz |
1.15 |
N Pria ke SMA Female |
|
Fr 1- n/sma-kjs |
|
|
Dc -18 GHz |
1.15 |
N betina ke sma jantan |
|
Fr 1- n/sma-kykg |
|
|
Dc -18 GHz |
1.15 |

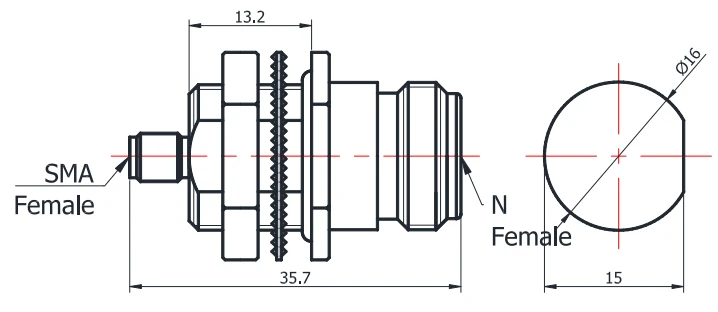

N betina ke betina sma dengan dudukan sekat |
|

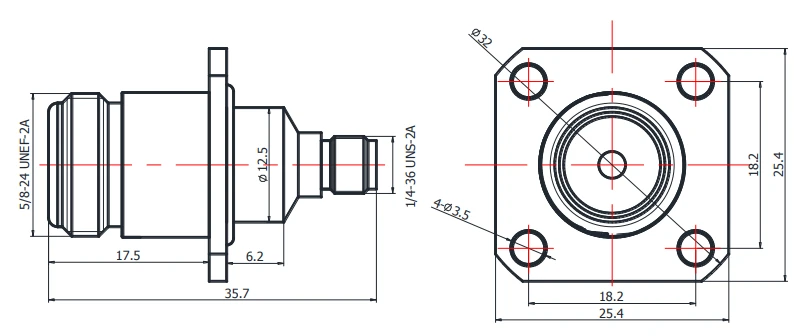

Fr 1- n/sma-kfkg |
|
|
Dc -18 GHz |
1.15 |
N betina untuk betina sma dengan flensa 4 lubang |
|

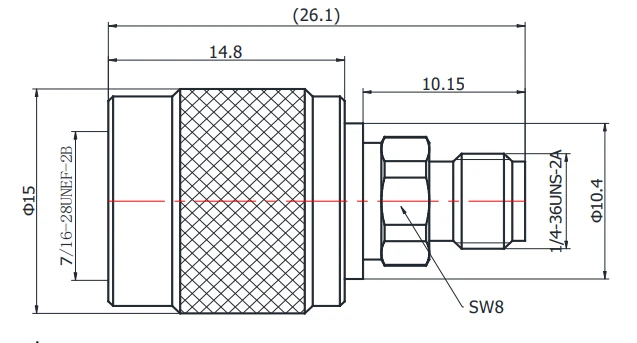

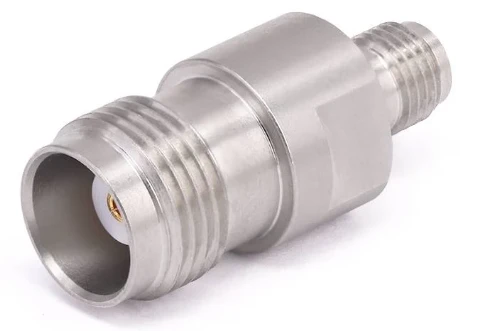

Adaptor SMA ke TNC RF |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
Fr 1- tnc/sma-jjs |
|
|
Dc -18 GHz |
1.25 |

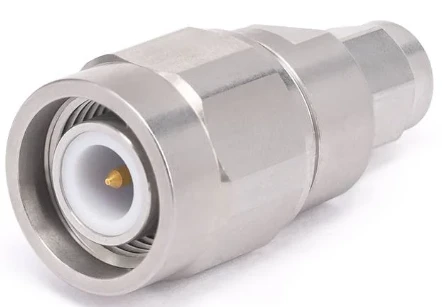

Tnc jantan ke sma jantan |
|
Fr 1- tnc/sma-kks |
|
|
Dc -18 GHz |
1.25 |
Tnc betina untuk perempuan sma |
|
Fr 1- tnc/sma-jks |
|
|
Dc -18 GHz |
1.25 |
Tnc jantan ke wanita sma |
|
Fr 1- tnc/sma-kjs |
|
|
Dc -18 GHz |
1.25 |
Tnc betina ke sma jantan |
|
Fr 1- tnc/sma-jj |
|
|
Dc -3 GHz |
1.25 |
Tnc jantan ke sma jantan |
|
Fr 1- tnc/sma-kk |
|
|
Dc -3 GHz |
1.25 |
Tnc betina untuk perempuan sma |
|
Fr 1- tnc/sma-jk |
|
|
Dc -3 GHz |
1.25 |
Tnc jantan ke wanita sma |
|
Fr 1- tnc/sma-kj |
|
|
Dc -3 GHz |
1.25 |
Tnc betina ke sma jantan |
|

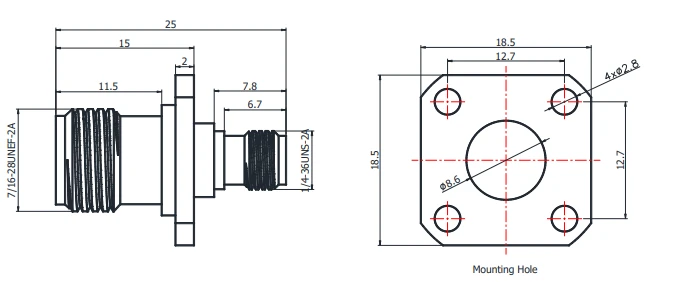

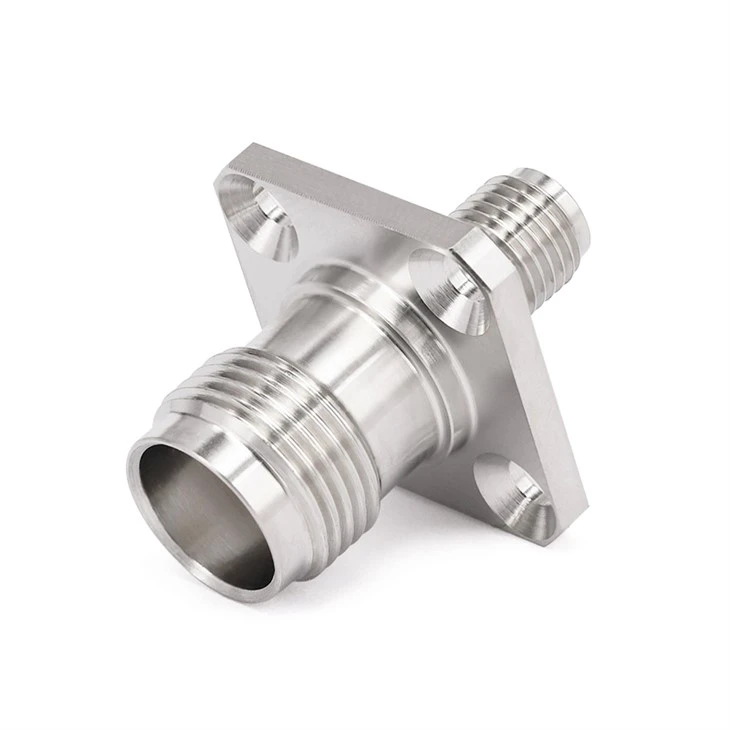

Fr 1- tnc/sma-kfk1 |
|
|
Dc -4 GHz |
1.25 |
TNC betina untuk perempuan SMA dengan flensa 4 lubang |
|
SMA ke adaptor RF BNC |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
Fr 1- bnc/sma-jjs |
|
|
Dc -18 GHz |
1.15 |
Bnc jantan ke sma jantan |
|
Fr 1- bnc/sma-kks |
|
|
Dc -18 GHz |
1.15 |
BNC betina untuk perempuan SMA |
|
Fr 1- bnc/sma-jks |
|
|
Dc -18 GHz |
1.15 |
Bnc jantan ke sma betina |
|
Fr 1- bnc/sma-kjs |
|
|
Dc -18 GHz |
1.15 |
BNC betina ke sma jantan |
|
SMA ke GPPO (mini-SMP) Adaptor RF |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
Fr 1- SMA/gppo-jj |
|
|
Dc -18 GHz |
1.20 |
Sma jantan ke pria gppo |
|
FR 1- SMA/GPPO-KK |
|
|
Dc -18 GHz |
1.20 |
Wanita sma ke gppo betina |
|
FR 1- SMA/GPPO-JK |
|
|
Dc -18 GHz |
1.20 |
Sma jantan ke wanita gppo |
|
FR 1- SMA/GPPO-KJ |
|
|
Dc -18 GHz |
1.20 |
Perempuan sma ke gppo jantan |
|
Adaptor RF SMA ke GPO (SMP) |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
Fr 1- SMA/gpo-jj |
|
|
Dc -18 GHz |
1.20 |
Sma jantan ke pria GPO |
|

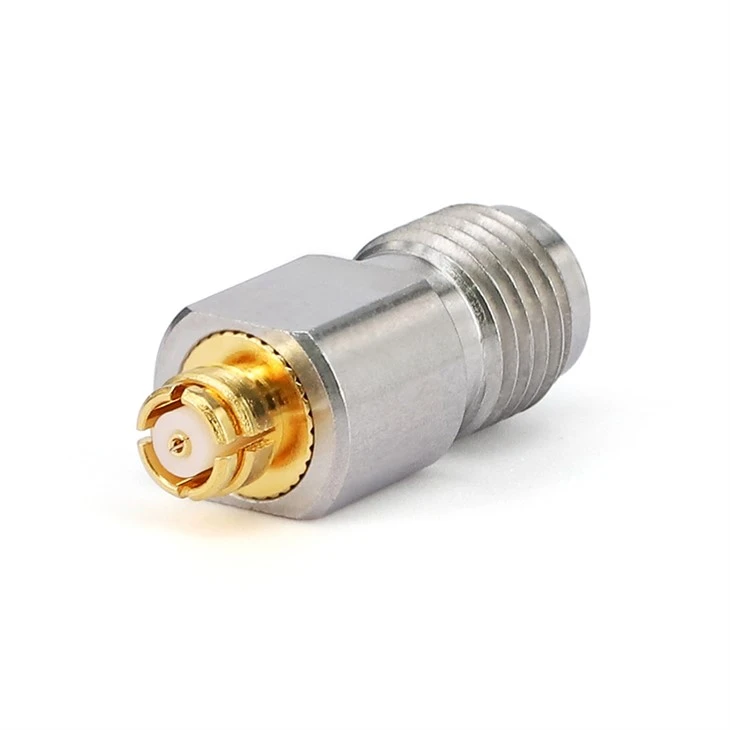

Fr 1- SMA/gpo-kk |
|
|
Dc -18 GHz |
1.20 |
Perempuan sma ke gpo betina |
|
Fr 1- SMA/gpo-jk |
|
|
Dc -18 GHz |
1.20 |
SMA Pria ke GPO Female |
|
FR 1- SMA/GPO-KJ |
|
|
Dc -18 GHz |
1.20 |
SMA Female to GPO laki -laki |
|

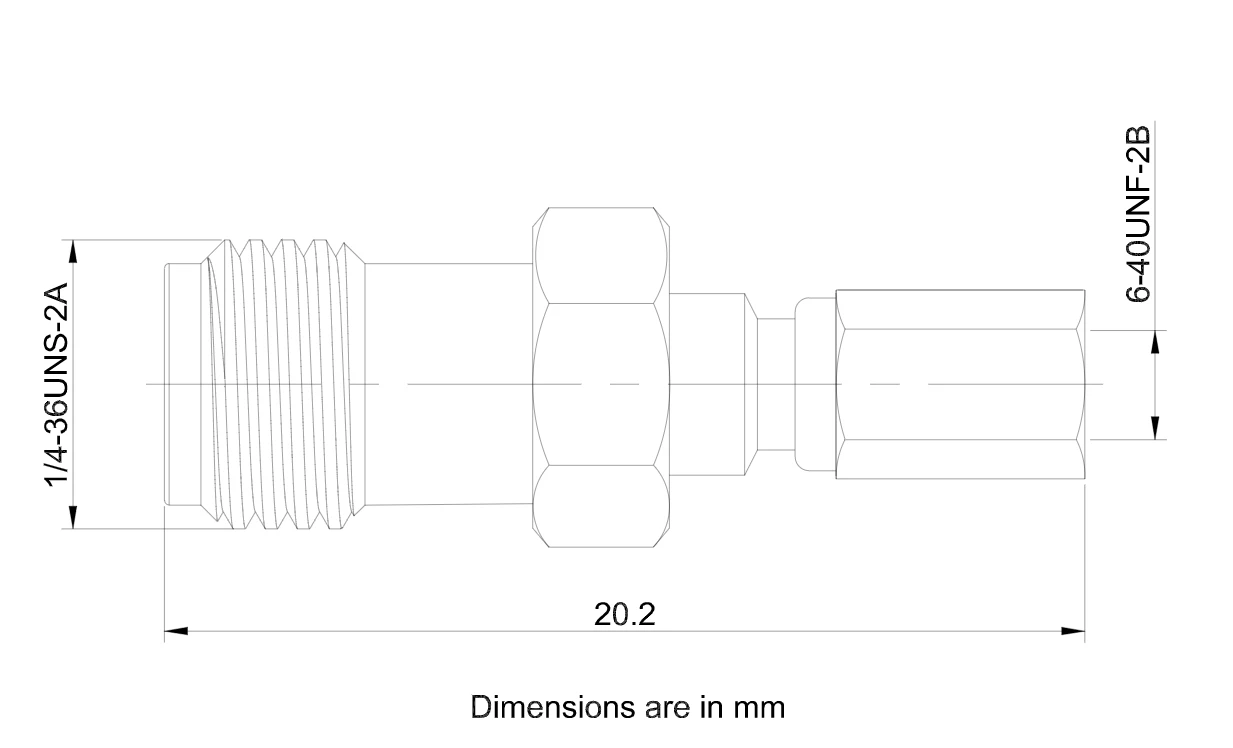

Adaptor SMA ke SSMA RF |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
FR 1- SMA/SSMA-JJ |
|
|
Dc -27 GHz |
1.25 |
Sma jantan ke laki -laki ssma |
|
FR 1- SMA/SSMA-KK |
|
|
Dc -6 GHz |
1.25 |
Perempuan sma ke wanita ssma |
|
FR 1- SMA/SSMA-JK |
|
|
Dc -18 GHz |
1.25 |
SMA Pria ke SSMA Female |
|
FR 1- SMA/SSMA-KJ |
|
|
Dc -18 GHz |
1.25 |
Wanita sma ke ssma jantan |
|

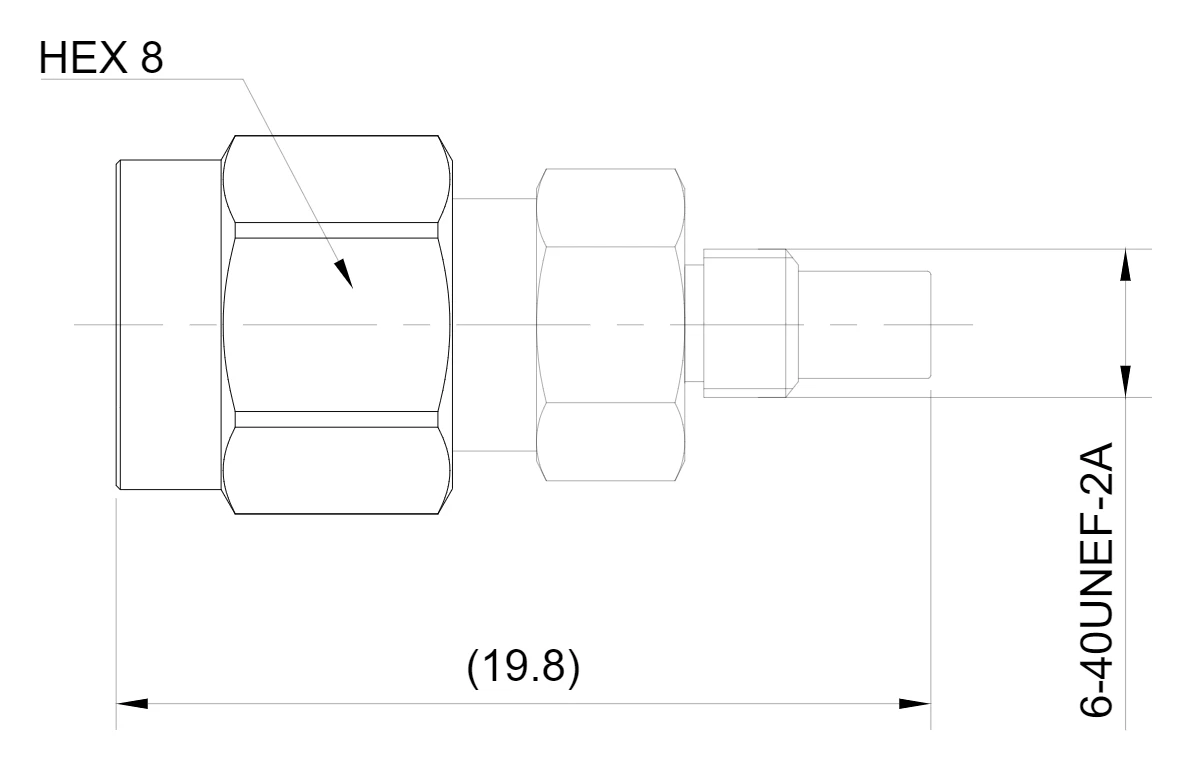

SMA ke adaptor RF SSMC |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
FR 1- SMA/SSMC-JJ |
|
|
Dc -6 GHz |
1.20 |
Sma jantan ke ssmc jantan |
|
FR 1- SMA/SSMC-KK |
|
|
Dc -6 GHz |
1.20 |
Perempuan sma ke ssmc betina |
|
FR 1- SMA/SSMC-JK |
|
|
Dc -6 GHz |
1.20 |
Sma jantan ke wanita ssmc |
|
FR 1- SMA/SSMC-KJ |
|
|
Dc -6 GHz |
1.20 |
Wanita sma ke ssmc jantan |
|
Adaptor SMA ke MCX RF |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|
Fr 1- SMA/mmcx-jj |
|
|
Dc -6 GHz |
1.20 |
Sma jantan ke mmcx jantan |
|
Fr 1- SMA/mmcx-kk |
|
|
Dc -6 GHz |
1.20 |
Perempuan sma ke mmcx betina |
|
FR 1- SMA/MMCX-JK |
|
|
Dc -6 GHz |
1.20 |
Sma jantan ke wanita mmcx |
|
FR 1- SMA/MMCX-KJ |
|
|
Dc -6 GHz |
1.20 |

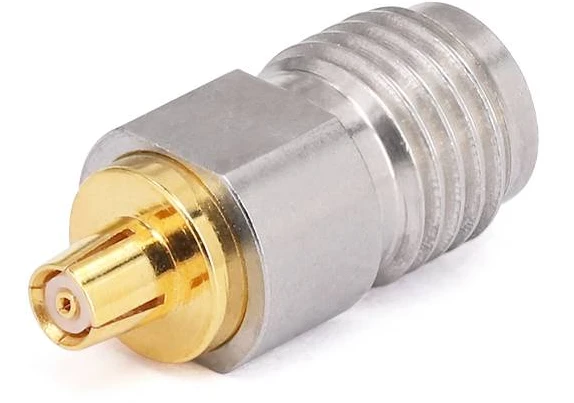

Perempuan sma ke mmcx jantan |
|
Adaptor SMA ke IPEX RF |
|||||
|
Sku |
Menggambar |
Frekuensi |
VSWR |
Jenis Deskripsi |
|
|

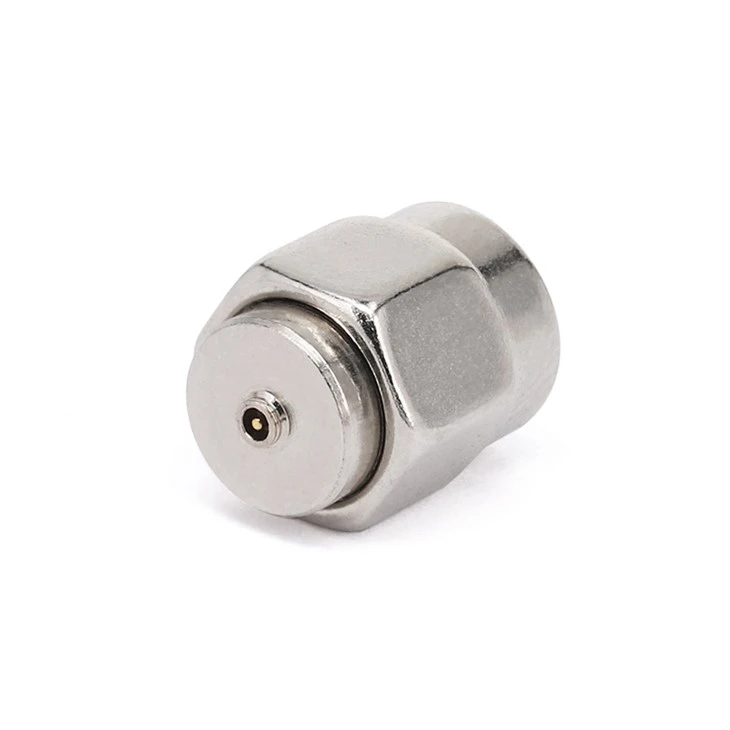

Fr 1- sma/ipx 1- jj |
|
|
Dc -6 GHz |
1.35 |
SMA MALE TO IPX1 MALE |
|
Fr 1- sma/ipx 1- kks |
|
|
Dc -6 GHz |
1.20 |
SMA Pria ke IPX1 Wanita |
|

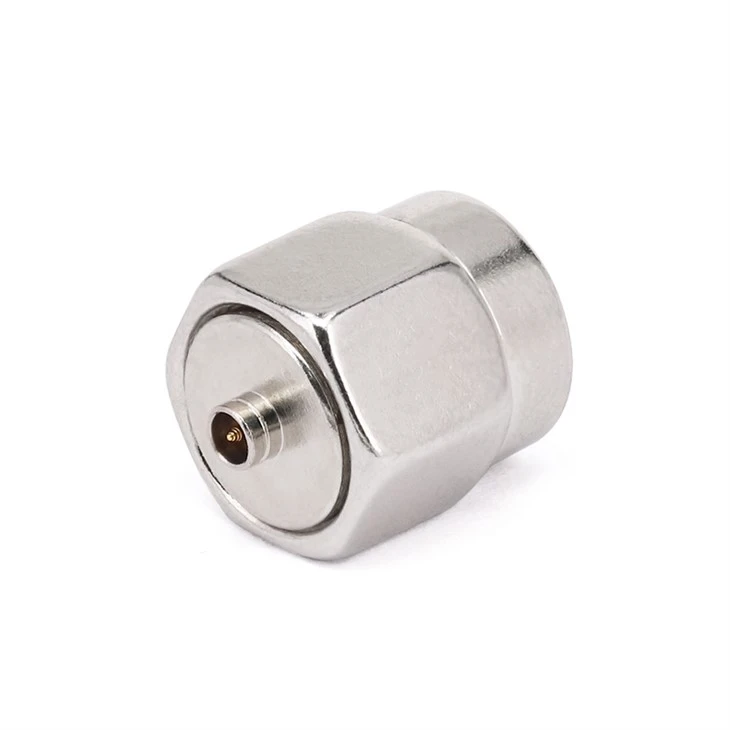

Fr 1- sma/ipx 4- jj |
|
|
Dc -6 GHz |
1.35 |
Sma jantan ke ipx4 laki -laki |
